Attenuation Tank Crate System 3200L–7200L | Surface Water Storage & Drainage Solution

The Spudulica attenuation tank crate packages provide a high-capacity solution for collecting and storing excess surface water from driveways, landscaping areas and construction projects. Designed to manage heavy rainfall and stormwater events, these systems allow water to be stored underground and released in a controlled way to the drainage network or reused as required.

Unlike soakaway systems which disperse water directly into the ground, attenuation tanks are designed to temporarily store water and control its release. This helps reduce flooding risk, manage surface water runoff and improve drainage performance in areas prone to water build-up.

Each attenuation package includes high-capacity modular crates, a protective geotextile layer and a prefabricated impermeable shoebox liner to create a sealed underground storage tank.

These systems are suitable for domestic landscaping projects, commercial groundworks and sustainable drainage installations.

Key Features

• Underground surface water storage system for drainage and stormwater management
• Modular attenuation crates provide large capacity water storage
• Impermeable shoebox liner creates a sealed attenuation tank
• Geotextile protective fleece prevents damage during installation
• Butyl tape included for secure liner sealing
• Suitable for domestic and commercial drainage projects
• Helps reduce flooding and manage excess surface water

Available Storage Capacities

The attenuation system is supplied with multiples of 400L modular crates to create the required storage capacity.

• 8 Crates – Approx. 3200L Storage Capacity
• 12 Crates – Approx. 4800L Storage Capacity
• 18 Crates – Approx. 7200L Storage Capacity

Each crate provides
400L nominal capacity (380L actual storage at 95% void ratio)

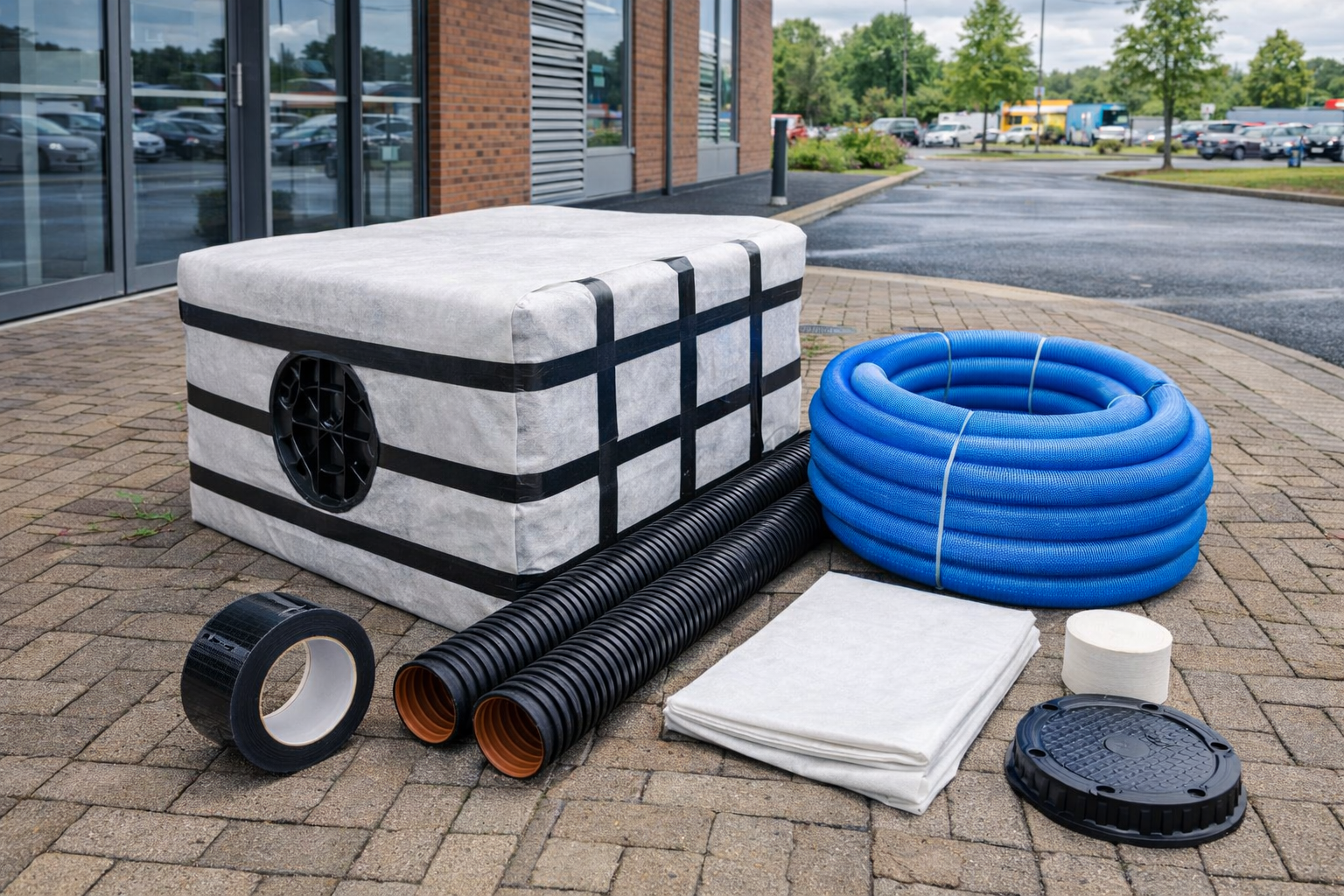

What’s Included in the Package

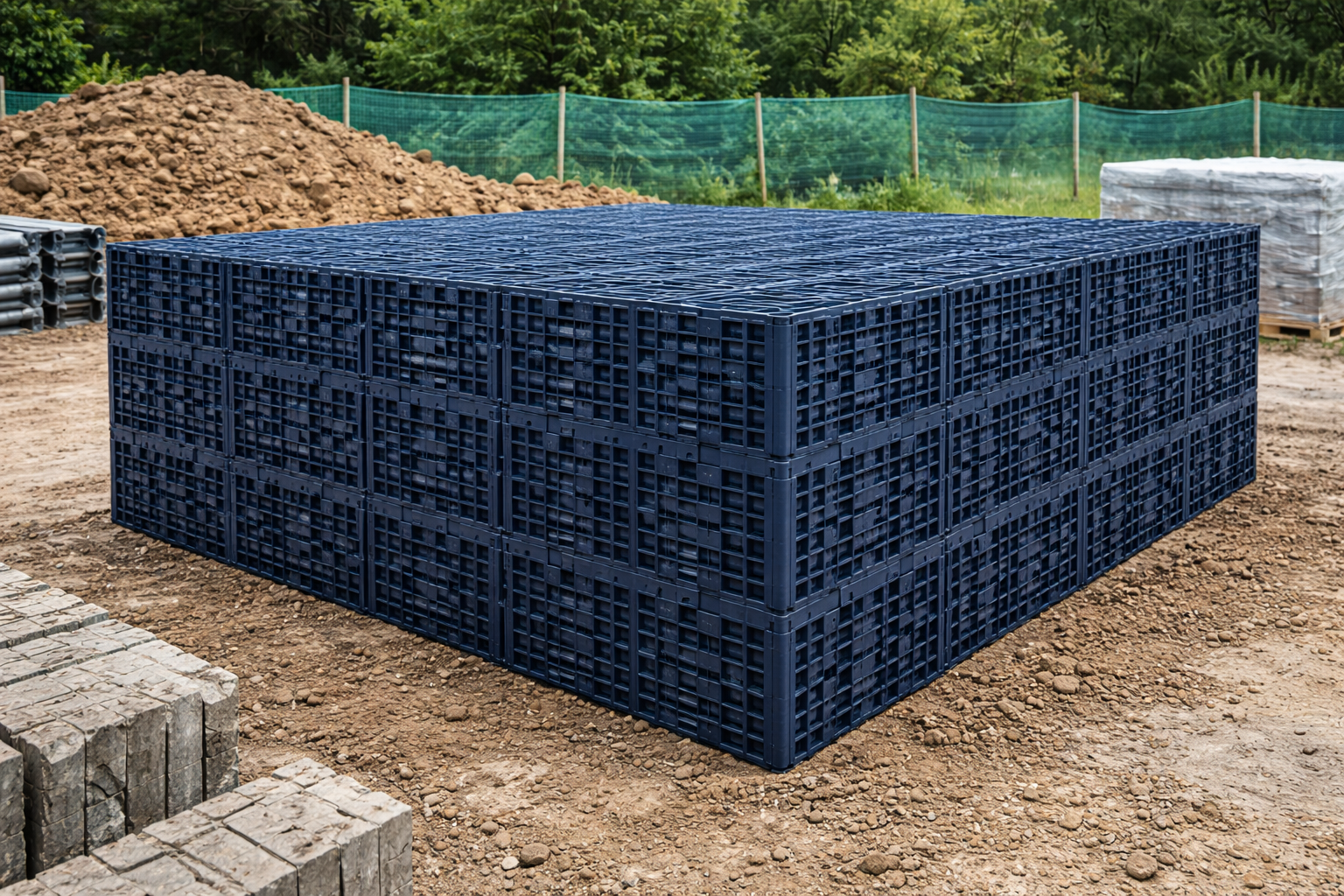

400L Modular Attenuation Crates
High strength modular crates used to create the underground water storage structure.

Landflex AS Shoebox Liner (Base & Lid)
A durable impermeable liner manufactured from plasticised PVC reinforced with polyester fabric for long-term stability and strength.

Butyl Sealing Tape
Used to secure and seal the attenuation liner system.

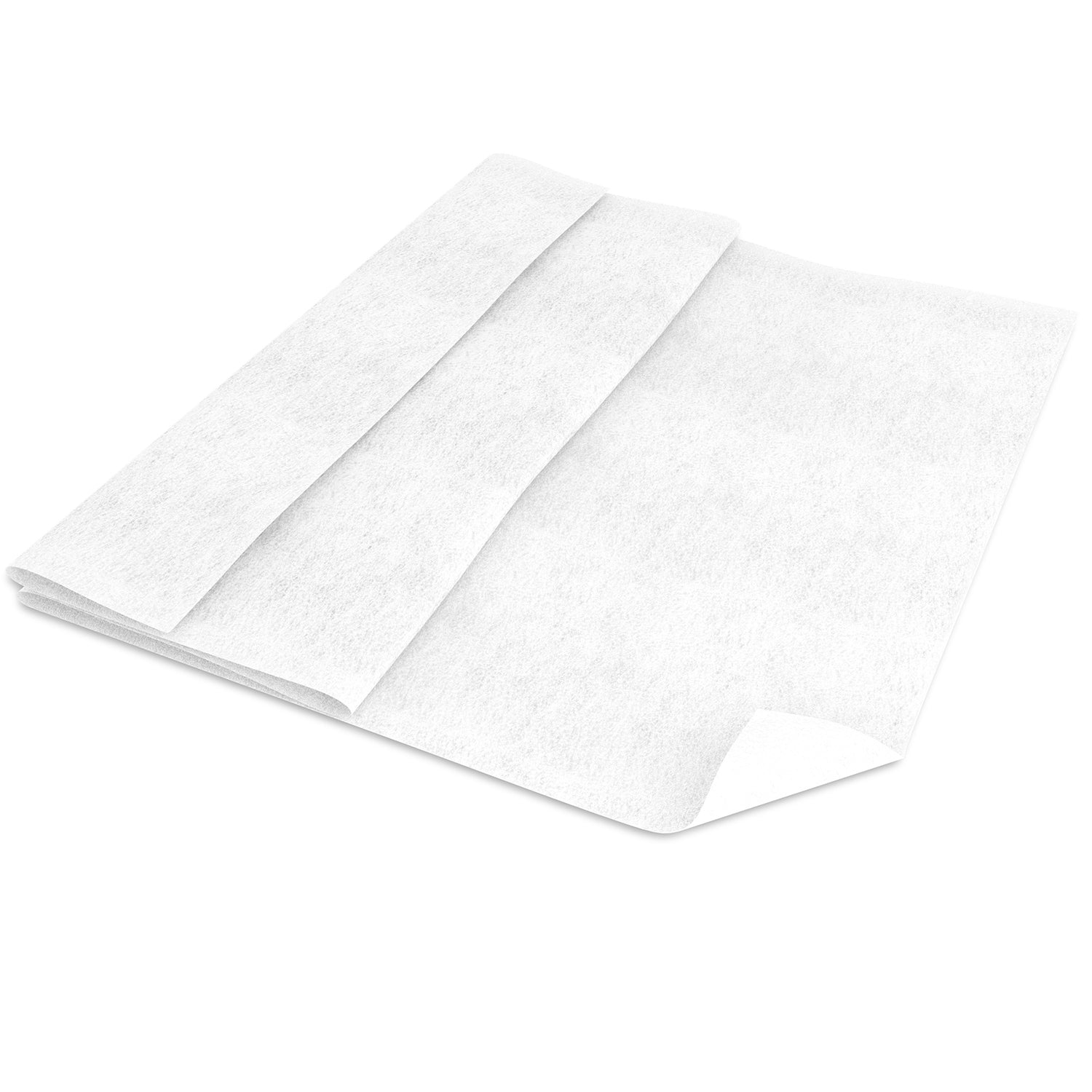

G3000 Protective Geotextile Fleece
250gsm non-woven geotextile layer used to protect the liner during installation and backfilling.

How the Attenuation System Works

The modular crate structure creates a large underground storage void. The impermeable shoebox liner holds water inside the tank, preventing it from dispersing into the surrounding soil.

Stored water can then be:

• Released slowly into the sewer network
• Controlled with flow regulators
• Reused for irrigation or water management systems

This controlled drainage approach helps reduce the impact of heavy rainfall and surface water flooding.

Delivery Information

Delivery method: Palletised delivery
Lead time: 5–7 working days from date of order
