200GSM Non Woven Membrane
200GSM Non Woven Membrane - White
A heavier duty non-woven geotextile a heavier weight at 200GSM than our standard fabric not only has the drainage and filtration properties of a usual weight fabric but with added durability for heavier weight projects and loading.
The heavier weight fabric has a higher tensile strength coupled with a high level of water permeability. Making a perfect solution for a wider range of construction and home projects.
This fabric is not only a heavier duty separation and filtration layer it can withstand higher loading.

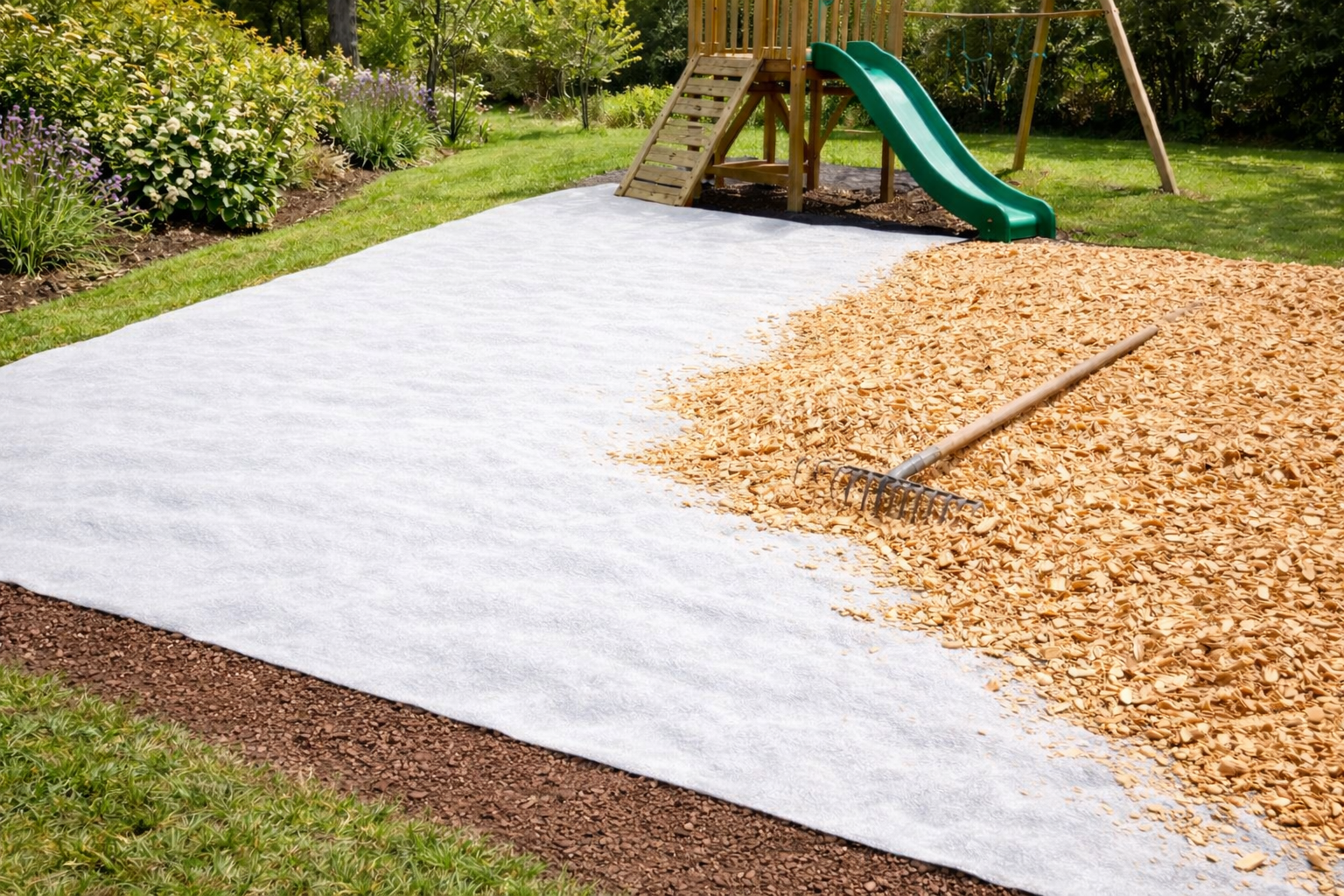

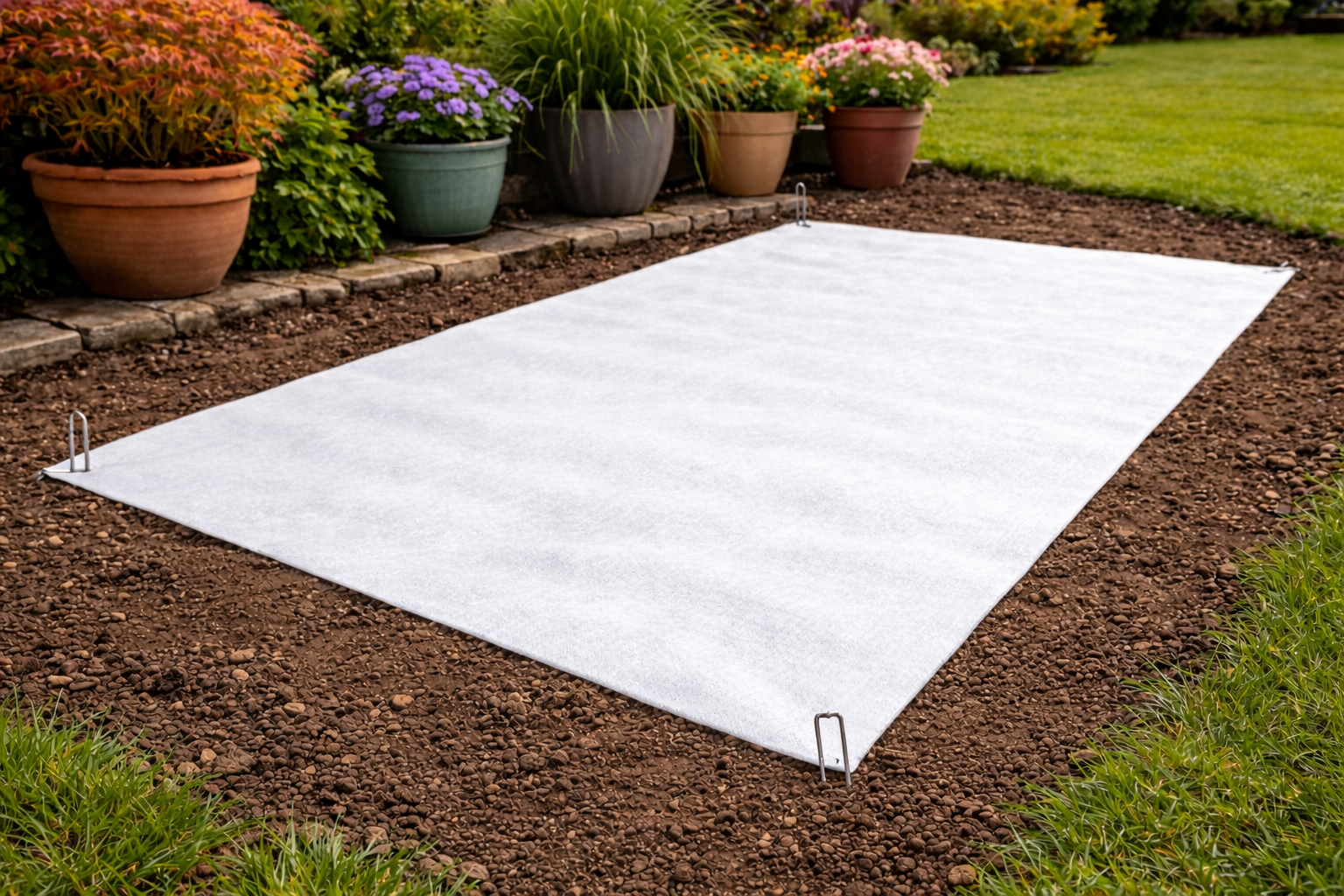

Typical project uses, driveway bases, shed bases, weed suppression, frost protection, artificial grass, under decking, drainage layers in higher loading areas and soakaway systems.
2.25m Wide and different Lengths of Cut Roll of Membrane – 200gsm white
Great for ground stabilisation, separation, frost protection and much more.
Commercial grade 200GSM membrane. Has a UV inhibitor added.
Tough and versatile - Sizes – 2.25m width by m linear length - Area in m2.
2.25mx5m – 11.25m2
2.25mx10m – 22.5m / 2.25mx20m – 45m2
2.25mx100m – 225m2
All of our products are thermally bonded to provide a durable, tough fabric which has proven to be one of the highest quality general purpose membranes on the market.
|
Test |
Standard |
200GSM Fabric Score |
|
Tensile Strength (kN/m) |
EN 10319 |
18 |
|
Elongation at maz load (%) |
EN10319 |
50 |
|
CBR Puncture resistance (N) |
EN ISO 12236 |
2900 |
|
Cone Drop Penetration (mm) |
EN 918 |
18 |
|
Pore size 90% finer than (microns) |
EN ISO 12956 |
70 |
|
Water permeability (x 10-3) (m/sec) 11058 |
EN ISO |
80 |
|
Effect of UV light |
- |
Contains Inhibitor |
CE marked and manufactured under BS EN ISO 9001
PLEASE NOTE: This item will be sent folded; the membrane is cut from a much larger roll. Larger pieces 45m2 and 225m2 will be on a roll and multiple pieces supplied will be cut as one piece for easy transportation.
Check out our handy blog section for tips and tricks to lay you membranes successfully.
