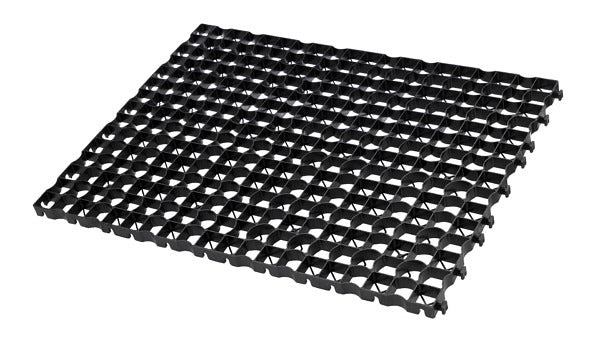

EcoGrid E40 XXL - The All Inclusive Grid Paving Grid - 20 Year Guarantee

EcoGrid E40 XXL - 20 Year Guaranteed

EcoGrid a world leader in permeable paving. A fully recycled plastic grid that is widely copied but can’t be beaten.

Fully guaranteed for 20 years and with a variety of options to cover many types of project.

EcoGrid E40 XXl has been specifically designed to be a great cost-saving alternative to a concrete or tarmac base for resin installations and for covering larger areas swiftly and efficiently; due to its larger tile size.

Permeable paving is an essential part of construction now and into the future, it is fully permeable and so is SUDs (sustainable drainage systems) compliant. Allow surface water to be absorbed back into the soil quickly with no need for other pipes or drainage channels. In the UK many areas allow permeable paving solutions without the need for planning permission.

EcoGrid is fully tested for loading and has been used globally for a variety of projects. See EcoGrid literature for specifics.

Best quality plastic paving grid available on the market. 500 tonnes per metre or 20 tonne axle load maximum.

Fully independently, tested, made from 100% recycled plastic.

4cm Deep - 133x1000cm Tile - 1x is 1.33m2 area

Suitable For applications Such As:

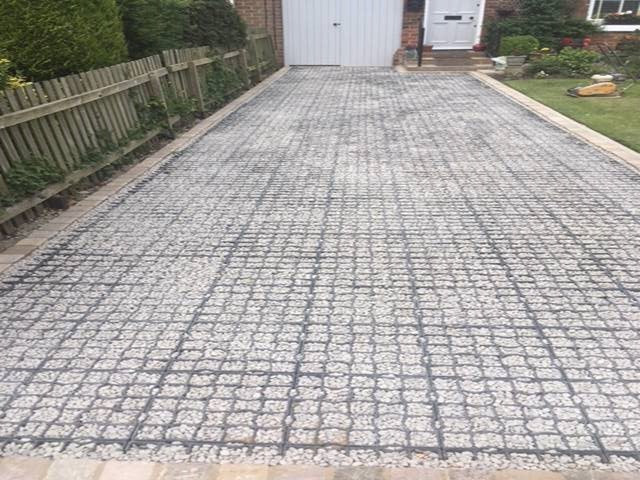

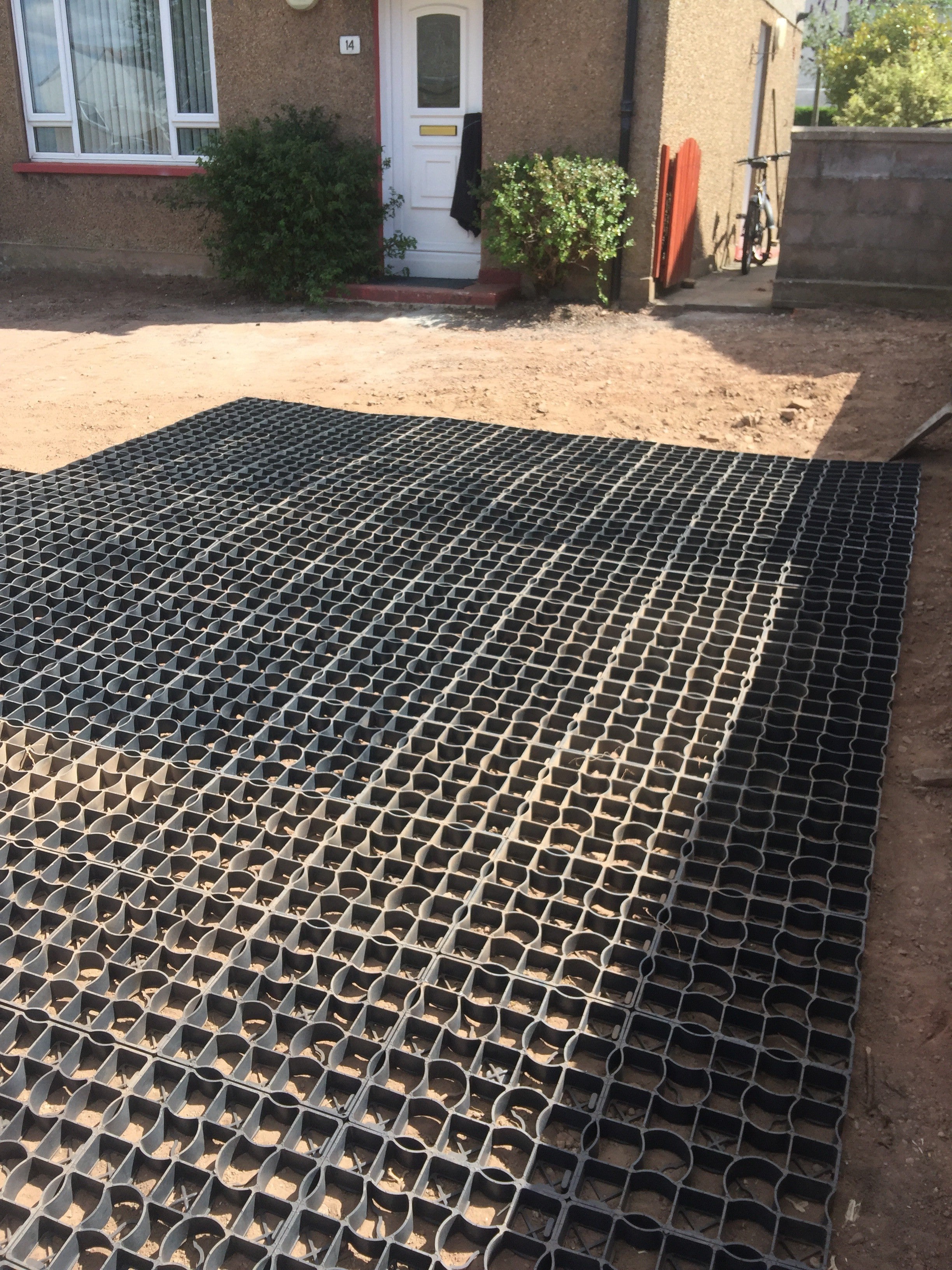

• Driveways
• Gardens
• Town & Village Squares
• Parks, Footpaths & Cycle Lanes
• Parking Areas
• Lay-bys
• Entrances & Exits
• Golf
• Camping
• Aviation
• Temporary Surfaces

Product Specifications:

• Dimensions 130 x 100 x 4cm
• Wall thickness 40mm
• Carrying load upto 400t/sqm
• Weight per unit 0.56 kg
• Wall height 3.6mm
• Material 100% recycled PE (polyethylene)
• Pressure resistance Up to 20 t axle load in acc. with DIN 1072

Let us know if you need assistance. Bigger quantities available.
