High-Visibility Orange Woven Warning Layer
High Visability Woven Membrane

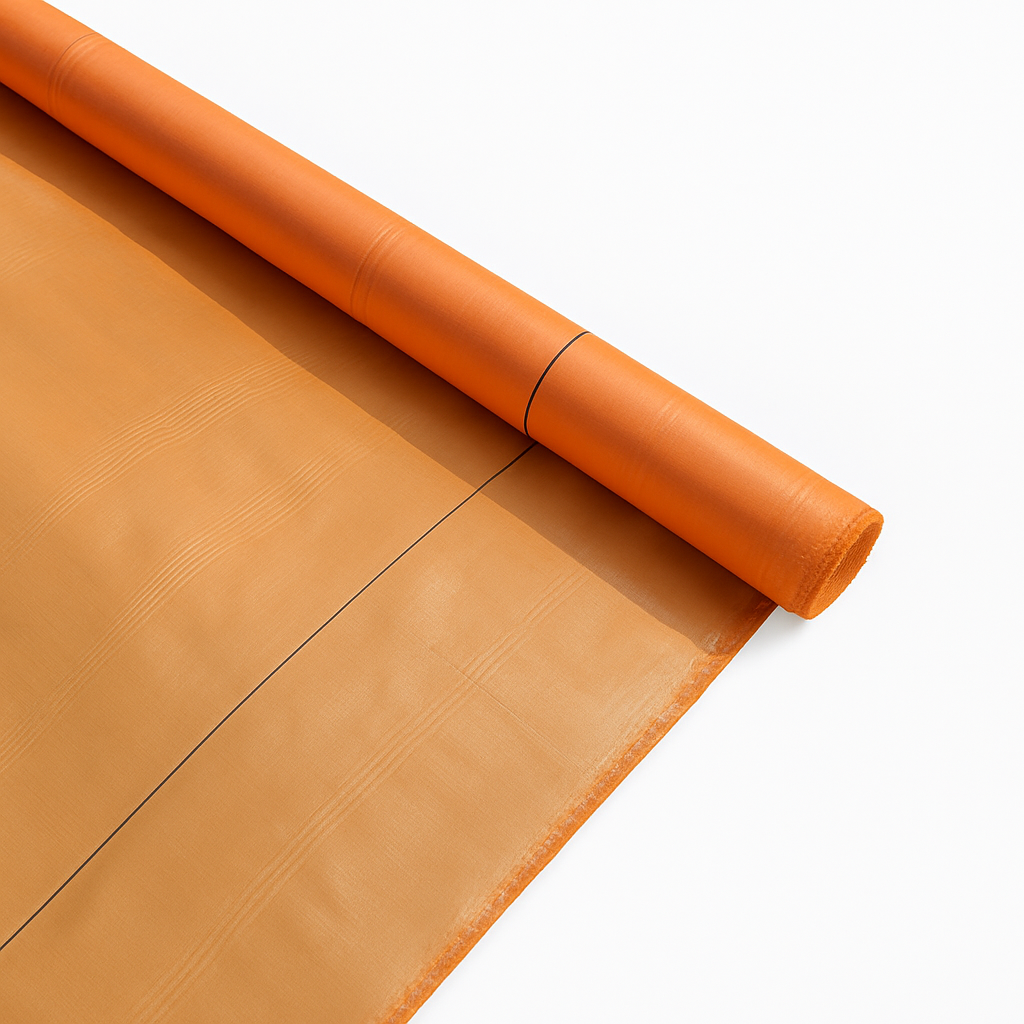

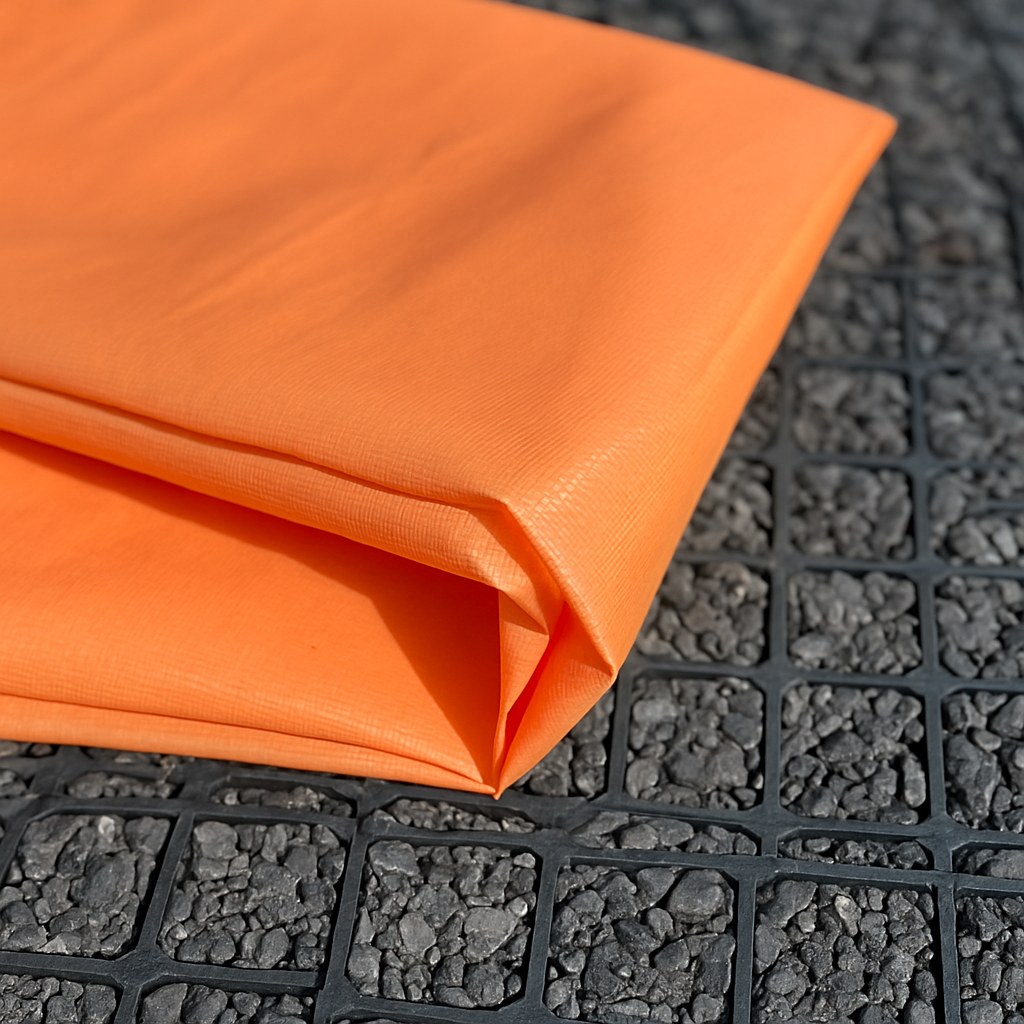

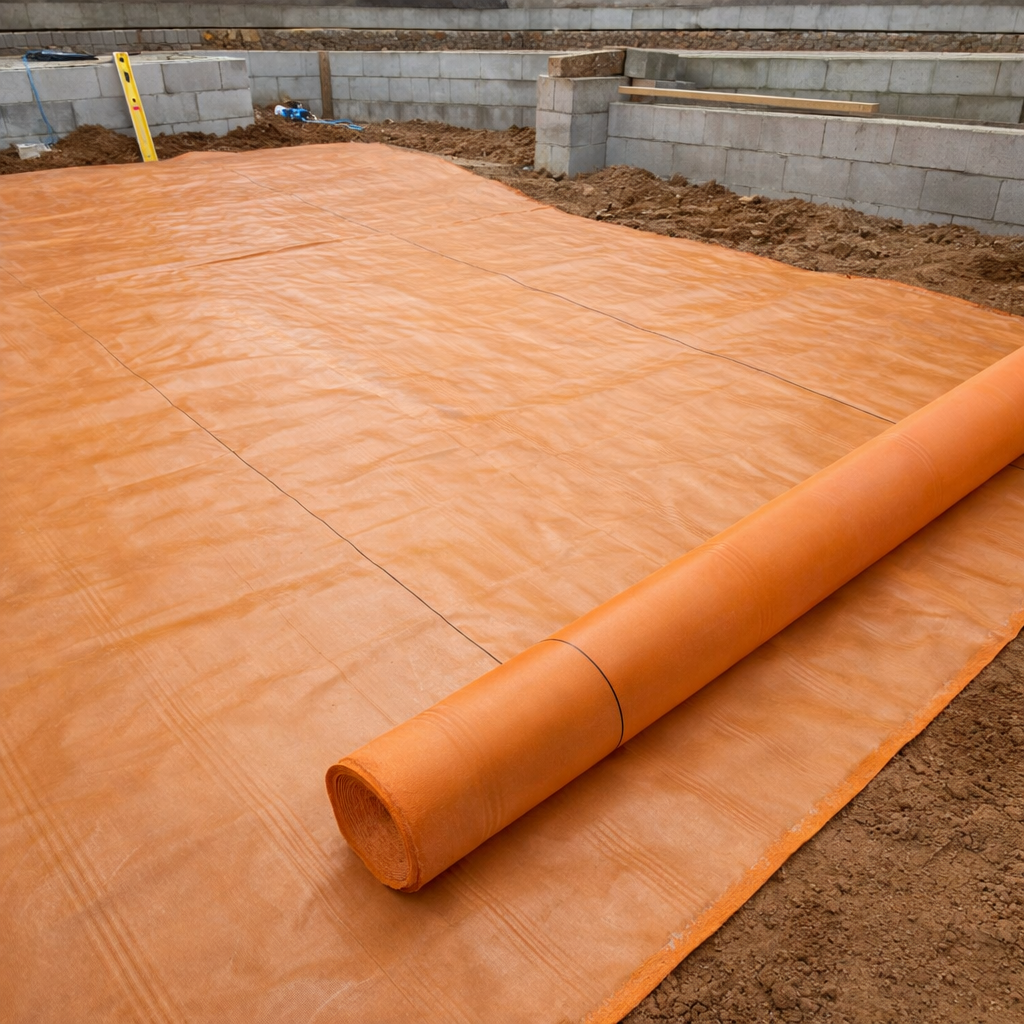

This woven geomembrane is made from extruded polypropylene tapes and is most commonly used in ground contaminated applications, providing a separation layer and warning marker in one solution.
As such the orange geotextile has a dual effect; Its bright, unmissable colour warns of potential danger at the point of any future excavations and it can also prevent the upward movement of contaminated soil particles.
Suitable for all manner of civil engineering and construction projects, the polypropylene material ensures resistance to all naturally occuring soil acids and alkalis, while bacteria and fungi also has no affect on the fabric. Long-term durability of at least 25 years is predicted in typical soil conditions and temperatures.
Benefits
- Highly visible separator
- Prevents intermixing of adjacent mineral layers
- Quick and easy to install
- Supplied in a variety of lengths for coverage - smallest size comes boxed and folded from a much larger roll. Sizes - 22.5m2/2.25x100m /4.5x100m
Properties |
Method |
Unit |
Hi-Vis Woven |
Tensile Strength (MD) | EN ISO 10319 | kN/m | 18 |
Tensile Strength (XD) | EN ISO 10319 | kN/m | 12 |
Elongation at break (MD) | EN ISO 10319 | % | 18 |
Elongation at break (MD) | EN ISO 10319 | % | 14 |
CBR Puncture Resistance | EN ISO 12236 | N | 2000 |
Permeability | EN ISO11058 | I/m2 | 13 |
Pore Size | EN ISO11058 | µm | 299 |
Weight | EN ISO9864 | g/m2 | 80 |
