Shallow Soakaway Crate Kits

Soakaway Kit Solutions - Shallow

Effortlessly combat waterlogging with our comprehensive Pennine Spudulica Soakaway Kits. Each kit includes a Pennine shallow 100L soakaway crate, a cut-to-size Spudulica 100gsm non-woven geotextile membrane, and adhesive tape for secure installation.

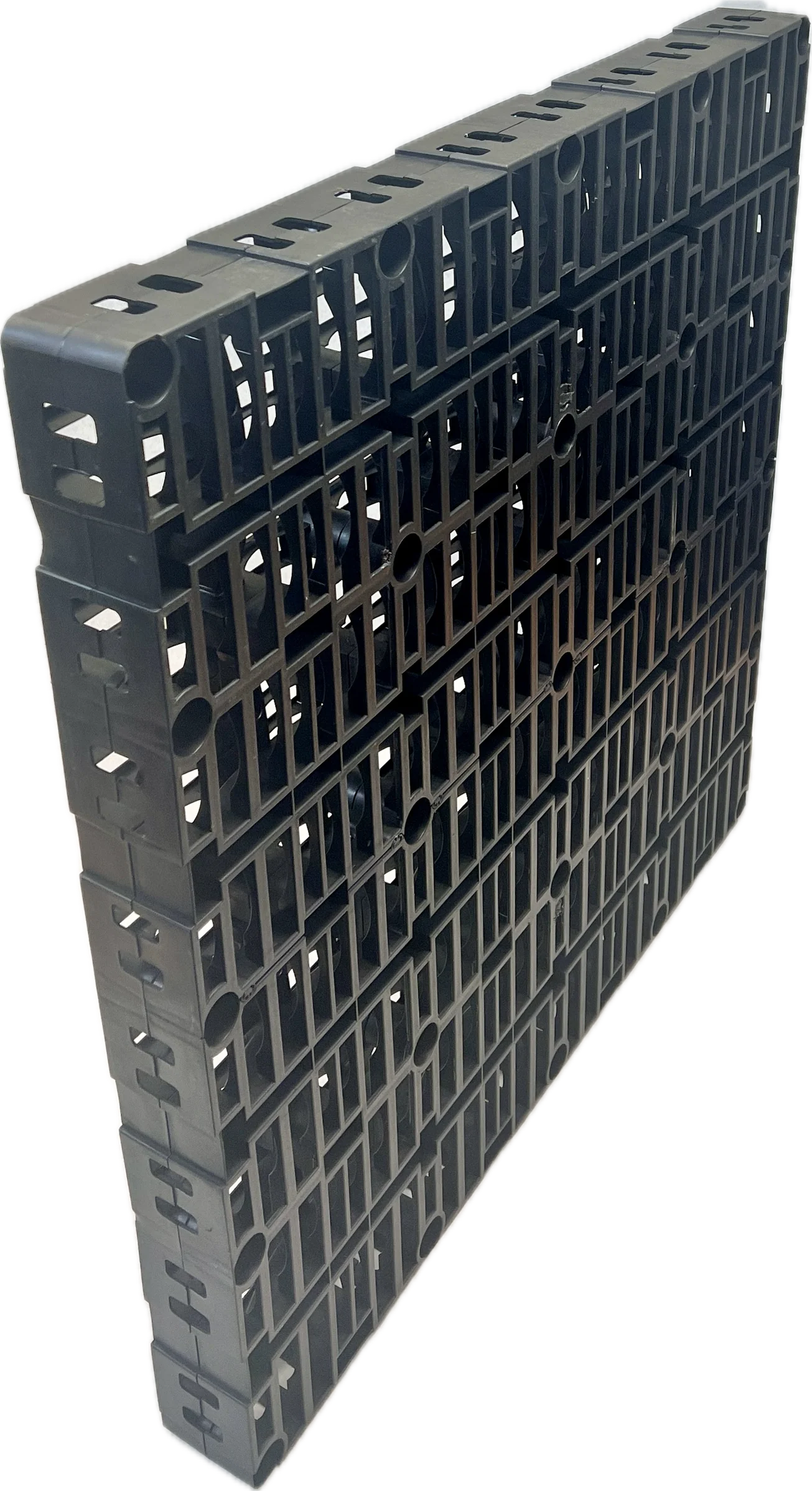

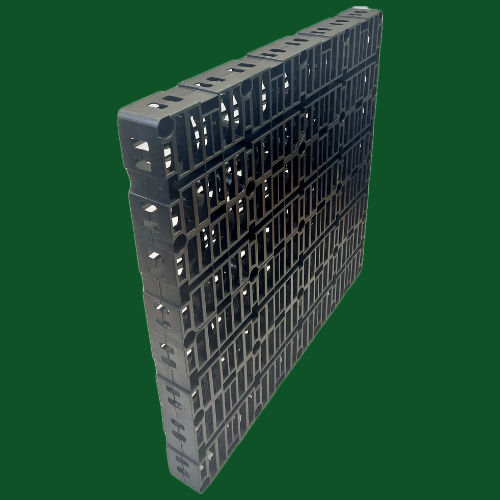

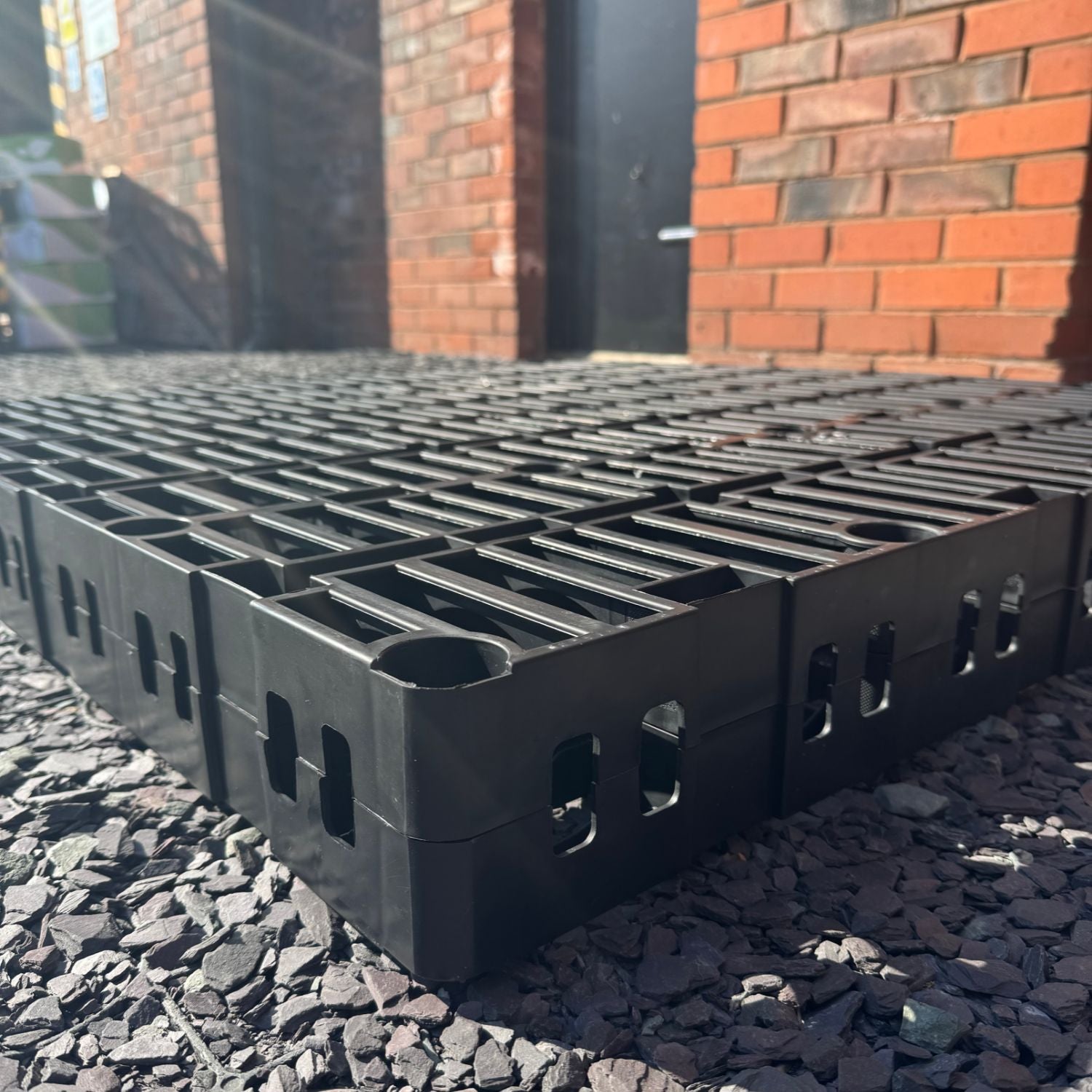

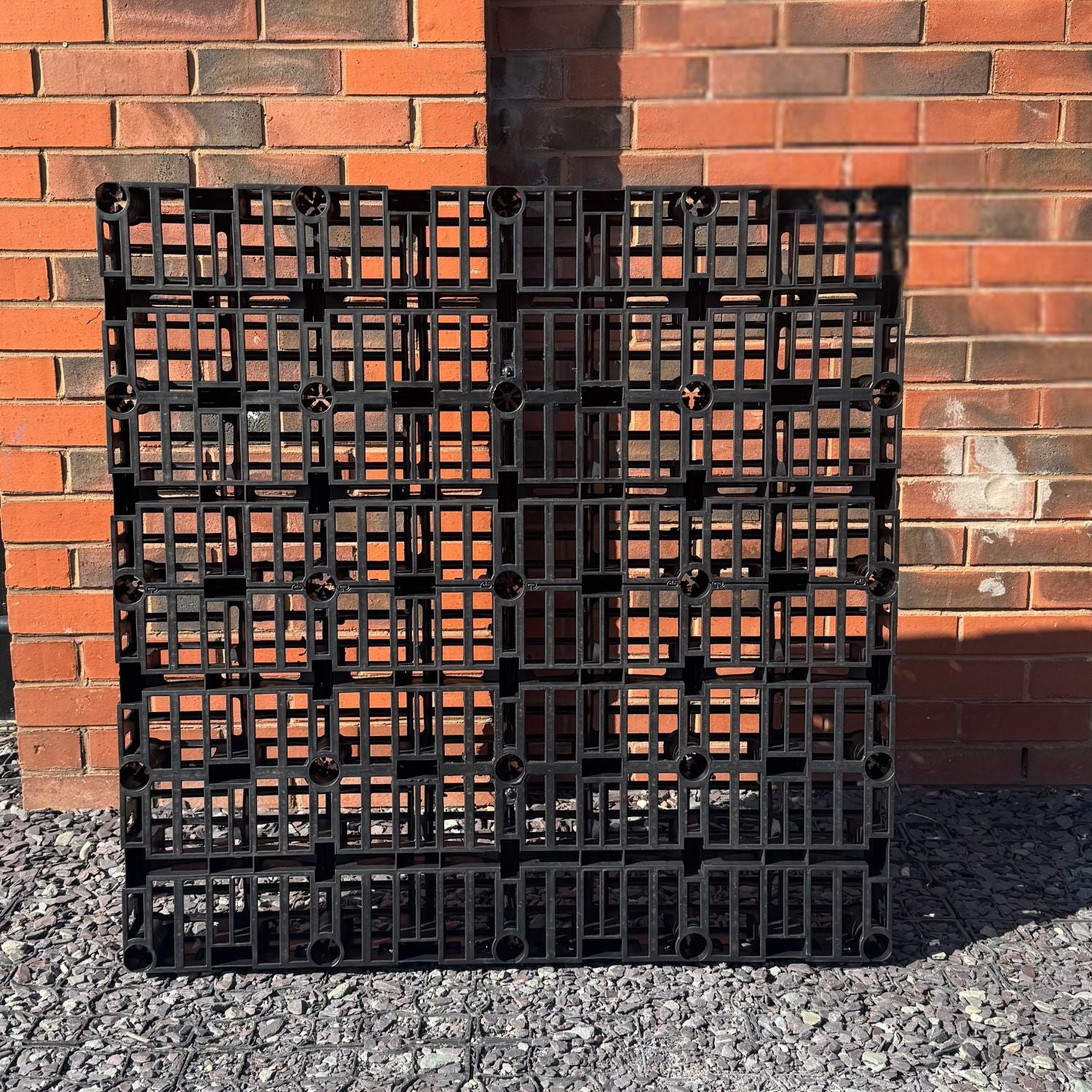

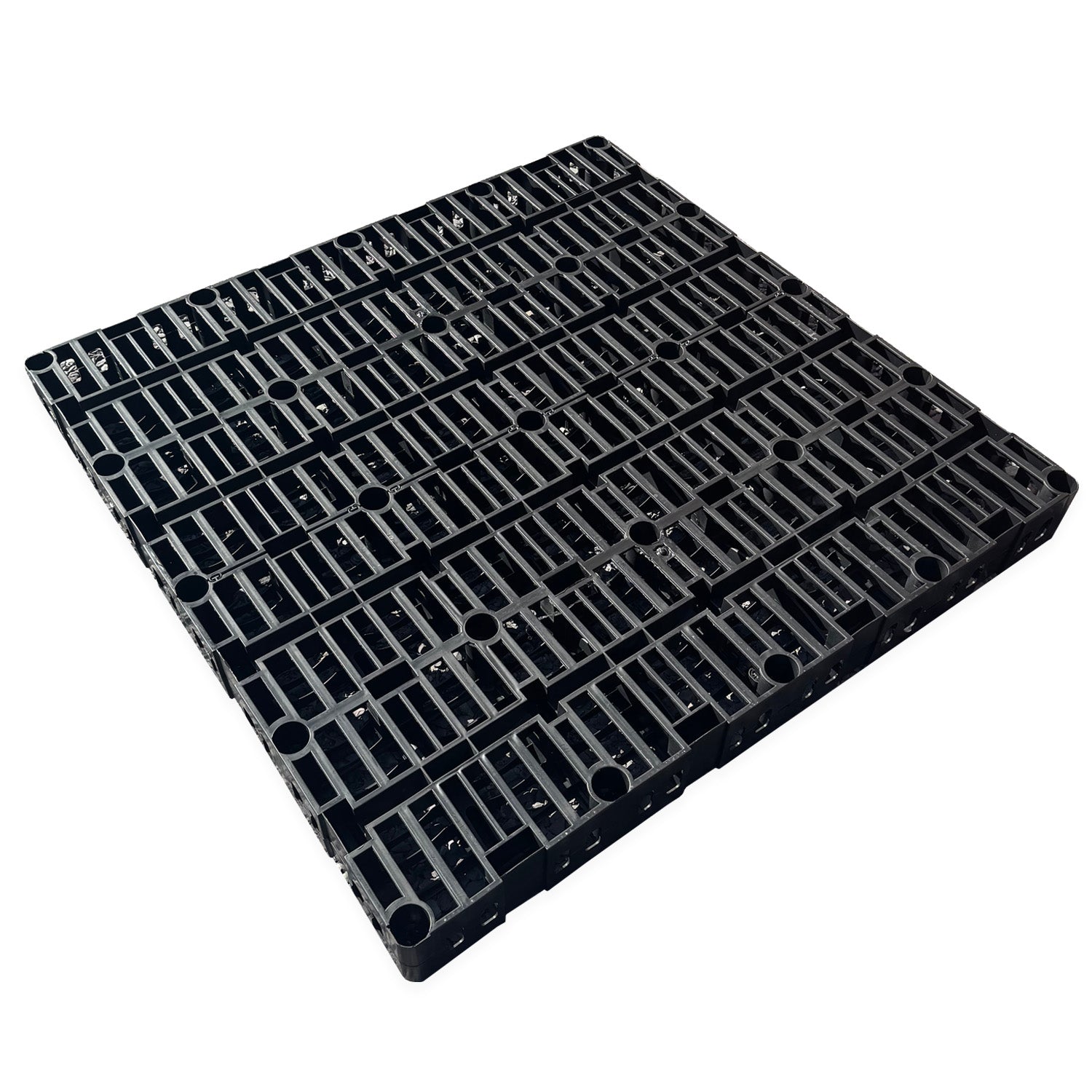

New Innovative shallow dig storm crate with a 91% void. With a high lateral strength enabling tanks with little cover depth for example 250mm for pedestrian and landscaped areas. A shallow solution with less digging needed to cover a specific area.

Enabling surface water to be soaked down into the crates away from the surface into the ground, then further dissipating the gathered water into the lower ground clearing water quickly from the your lawn and stopping puddles and further issues.

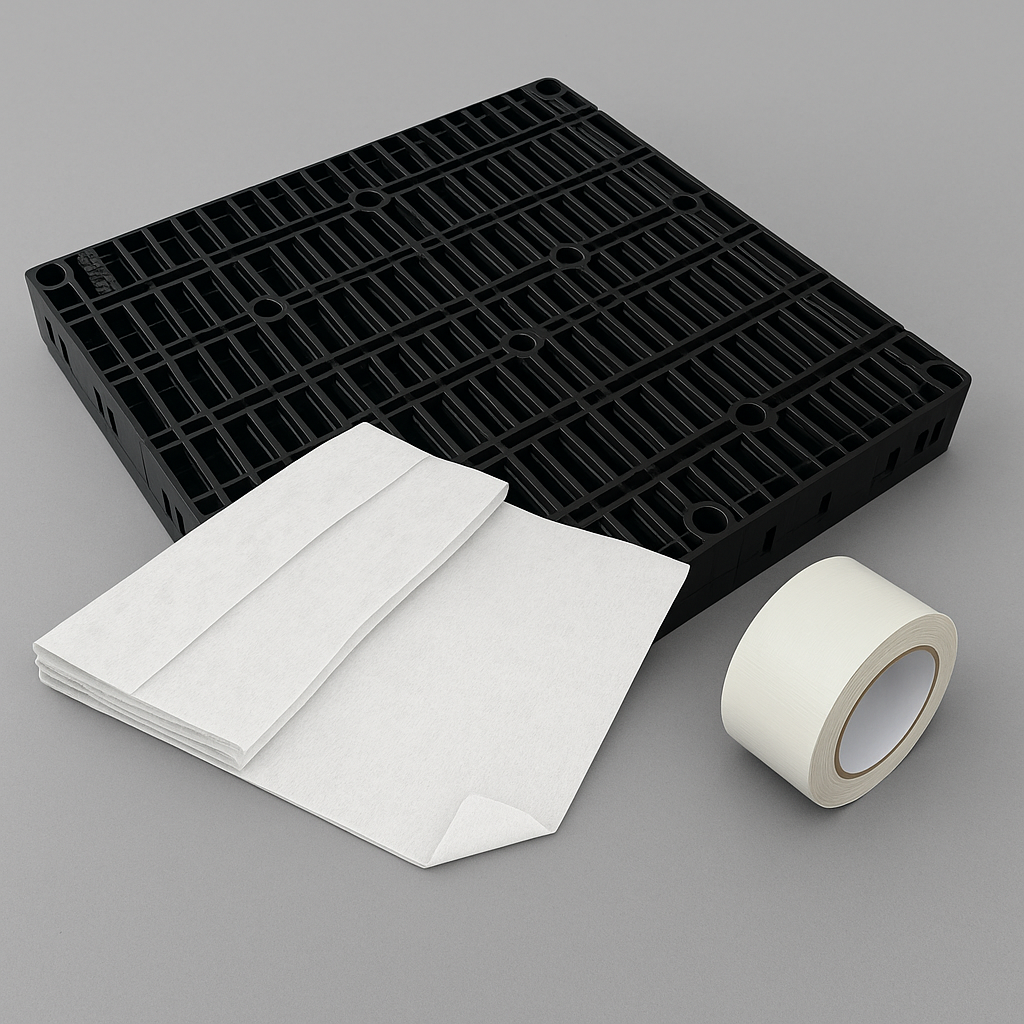

Pack Contains: Pennine 100L Crate, Spudulica 100gsm Geotextile Membrane + Joining Tape To Suit

Capacities Available: 100L, 200L, 300L, 400L, 500L, 600L, 800L, 900L & 1000L (kits comprise of multiple 100L capacity crates)

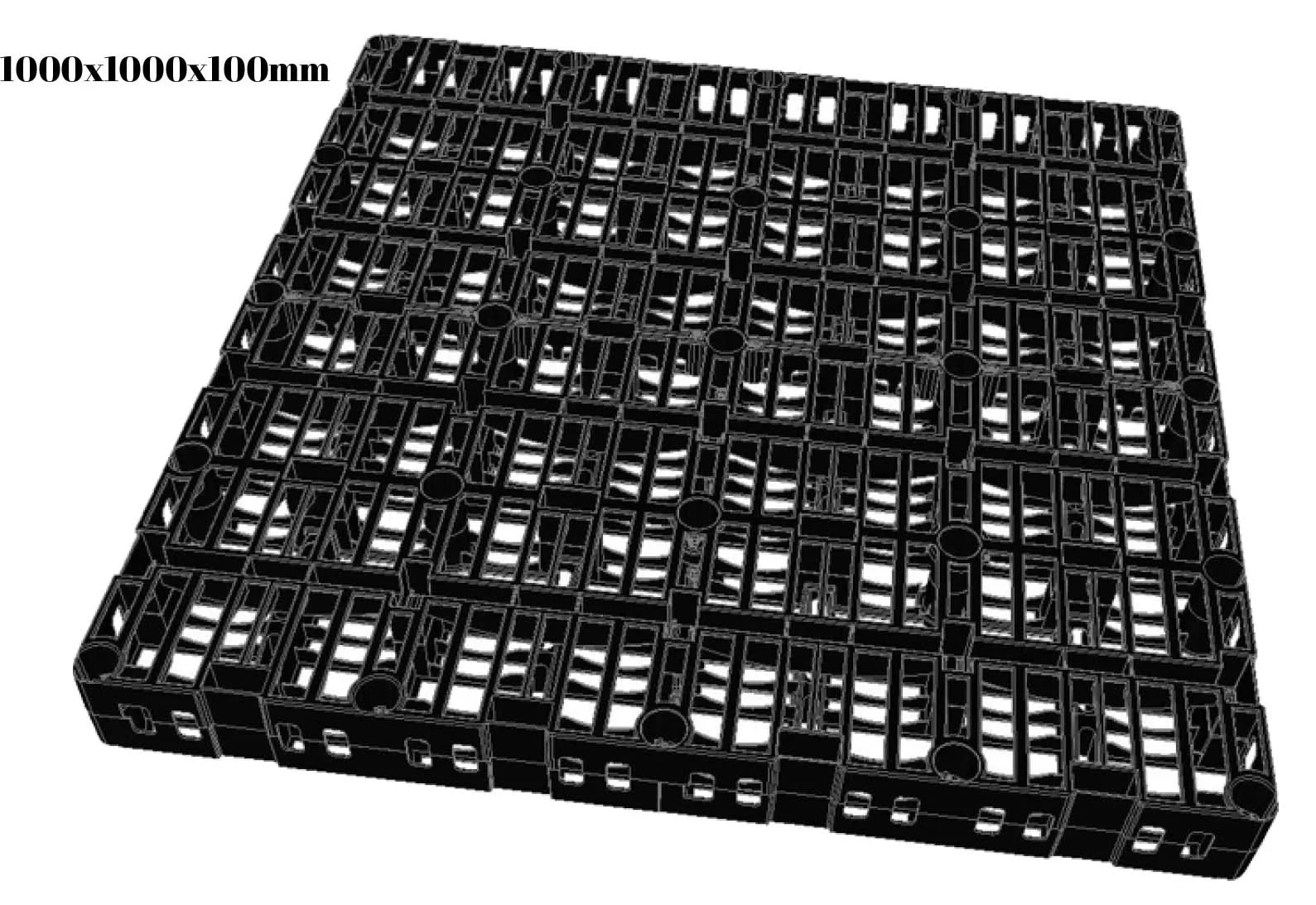

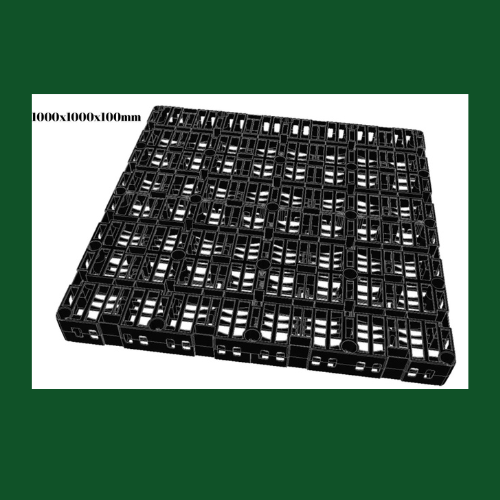

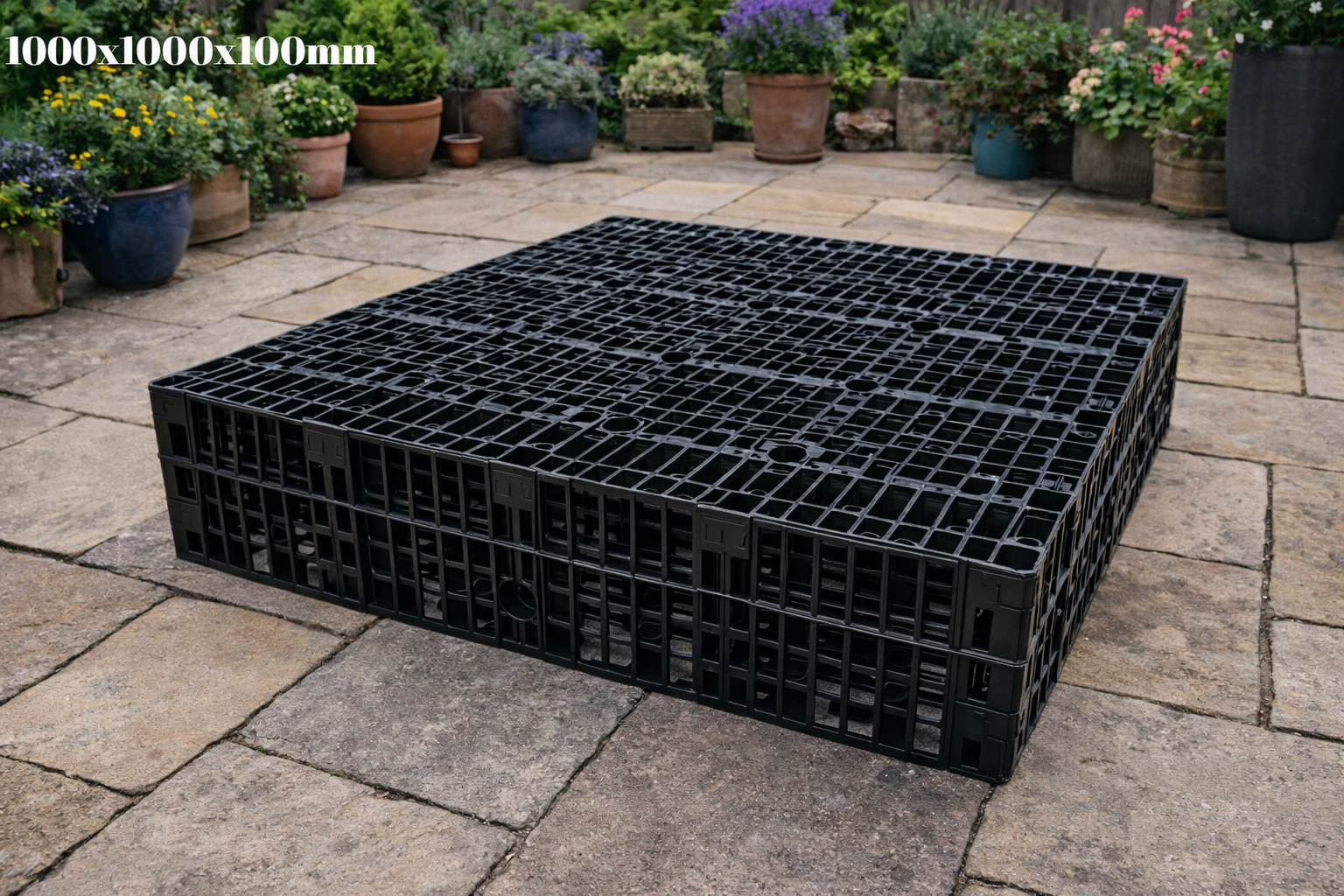

Crate Dimensions: 1000mm x 1000mm x 100mm

Crate Storage Volume: 100L

Crate Weight: 8kg (approx.)

Please Note: Before installation, ensure your ground is suitable for a soakaway by conducting a percolation test. Instructional videos are available on YouTube to guide you through this process.

Geotextile is sized for the kit – For all crates to be laid laterally side to side along a length due to the crates shallow nature. Short sides next to each other along a length.  Geotextile is calculated for 100L crates in the smallest size at a 2.25m width and linear length piece. If crates are separated then geotextile may not be enough.

Need any specifications or have questions check out our additional information and FAQ tabs or for geotextile uses check out our Blog.
