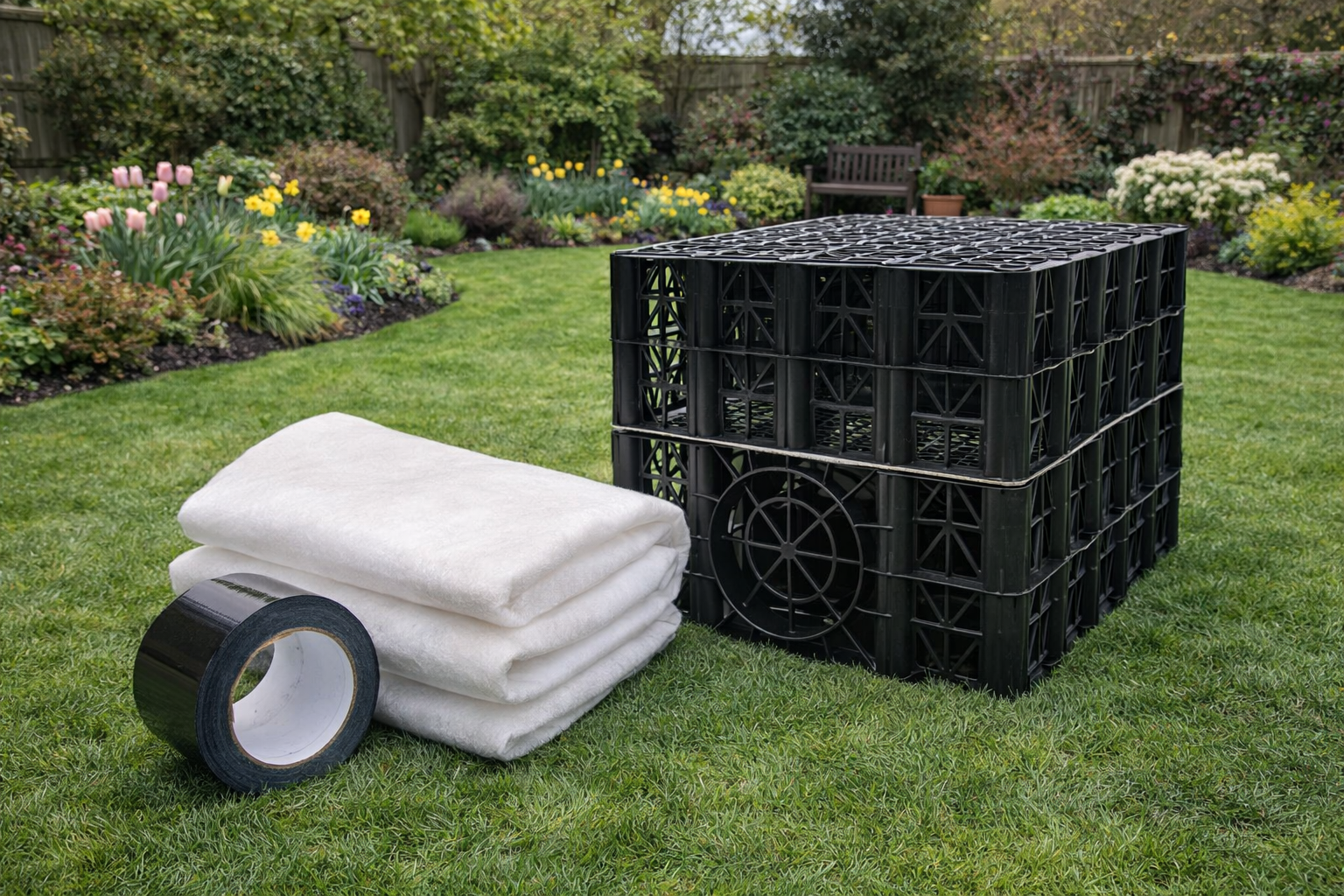

Soakaway Kit Polystorm PSM1A Crate 190L - Geotextile & Joining Tape

Soakaway Kit Solutions

Effortlessly combat waterlogging with our comprehensive Polystorm Spudulica Soakaway Kits. Each kit includes a Polystorm PSM1A 190L soakaway crate, a cut-to-size Spudulica 100gsm non-woven geotextile membrane, and adhesive tape for secure installation.

Enabling surface water to be soaked down into the crates away from the surface into the ground, then further dissipating the gathered water into the lower ground clearing water quickly from the your lawn and stopping puddles and furthur issues.

Pack Contains: Polystorm PSM1A Crate, Spudulica 100gsm Geotextile Membrane + Joining Tape To Suit

Capacities Available: 190L, 380L, 760L, 1140L, 1520L, 1900L & 2280L (kits comprise of multiple 190L capacity crates)

Crate Dimensions: 1000mm x 500mm x 400mm Crate Storage Volume: 190L

Crate Weight: 9kg (approx)

 Key Features:

• Multiple Capacities: Choose from 190L, 380L, 760L, 1140L, 1520L, 1900L, and 2280L options, with each kit comprising multiple 190L capacity crates.
• Dimensions & Weight: Each crate measures 1000mm x 500mm x 400mm with a storage volume of 190L and an approximate weight of 9kg.
• Durable Construction: Made from selected recycled materials, our crates feature a 3D flow design with integrated inlets and outlets, a compressive strength of 61 tonnes/m², and a 95% void ratio.
• Longevity: With a 60-year creep limited life expectancy and BBA approval, our kits are designed for long-term performance.
• Geotextile Membrane: The Spudulica 100gsm geotextile membrane ensures that particles do not clog the crates, maintaining efficiency over time.
• Adhesive Tape: Our EcoGrid tape is tough, water-resistant, and measures 10cm in width and 50m in length, perfect for covering joins with ease.

Please Note: Before installation, ensure your ground is suitable for a soakaway by conducting a percolation test. Instructional videos are available on YouTube to guide you through this process.

Geotextile is sized for the kit – For all crates to be connected together in their smallest configuration. Longest sides together then stacked. Geotextile is calculated for 190L crates in the smallest size at a 2.25m width and linear length piece. If crates are separated then geotextile may not be enough.

Need any specifications or have questions check out our additional information and FAQ tabs or for geotextile uses check out our Blog.
