Horse Arena Membrane Package – Double Layer Geotextile System | Woven & Non-Woven | Full Arena Kits

 Double Layer Geotextile System

Our Full Horse Arena Membrane Package – Double Layer is a complete geotextile solution designed for professional and domestic equestrian arena construction.

This system combines a heavy-duty woven geotextile for ground stabilisation with a non-woven membrane for drainage and filtration, helping to create a long-lasting, level and high-performing riding surface.

By preventing layer mixing and allowing effective water movement, this package helps reduce maintenance, improve surface consistency and extend the lifespan of your arena.

Perfect for horse arenas, paddocks and gallops, this complete kit includes everything you need for installation, including specialist jointing tape for securing overlaps.

Key Features

• Complete horse arena membrane kit – woven + non-woven layers
• Designed for equestrian arena construction and ground stabilisation
• Improves drainage and prevents surface waterlogging
• Reduces layer mixing and maintains a consistent riding surface
• Heavy-duty woven membrane for load bearing and stability
• Non-woven geotextile for filtration and water permeability
• Includes strong geotextile jointing tape for secure installation
• Suitable for domestic and commercial equestrian projects

What’s Included

Each package includes sufficient membrane and tape for your selected arena size:

• 20m x 20m Arena (400m²)
1 roll woven (4.5m x 100m)
1 roll non-woven (4.5m x 100m)
2 rolls of tape

• 20m x 40m Arena (800m²)
2 rolls woven
2 rolls non-woven
4 rolls of tape

• 30m x 40m Arena (1200m²)
3 rolls woven
3 rolls non-woven
8 rolls of tape

• 40m x 40m Arena (1600m²)
4 rolls woven
4 rolls non-woven
10 rolls of tape

• 40m x 60m Arena (2400m²)
6 rolls woven
6 rolls non-woven
12 rolls of tape

How It Works

• Woven Geotextile (Base Layer)
Installed directly onto the prepared ground to provide stabilisation and load distribution. Prevents sub-base from sinking or mixing with soil.

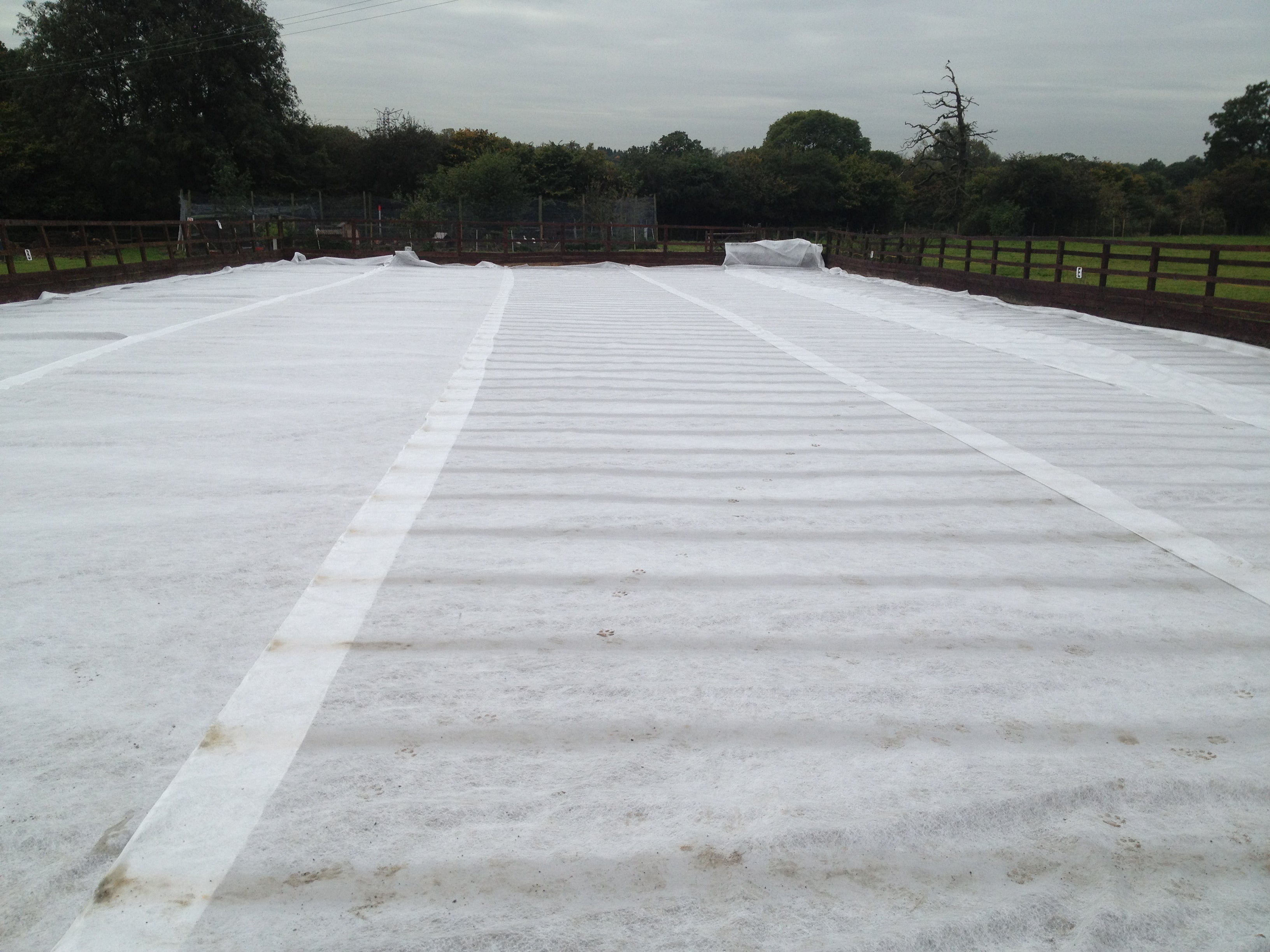

• Non-Woven Geotextile (Top Layer)
Installed beneath the riding surface to allow water drainage while preventing contamination of the surface layer. Helps maintain a consistent, safe riding finish.

Please Note

Full rolls are 4.5m wide x 100m long and are heavy.
A tail lift is available for delivery, but assistance may be required on site for moving and positioning.
